SOPHIE

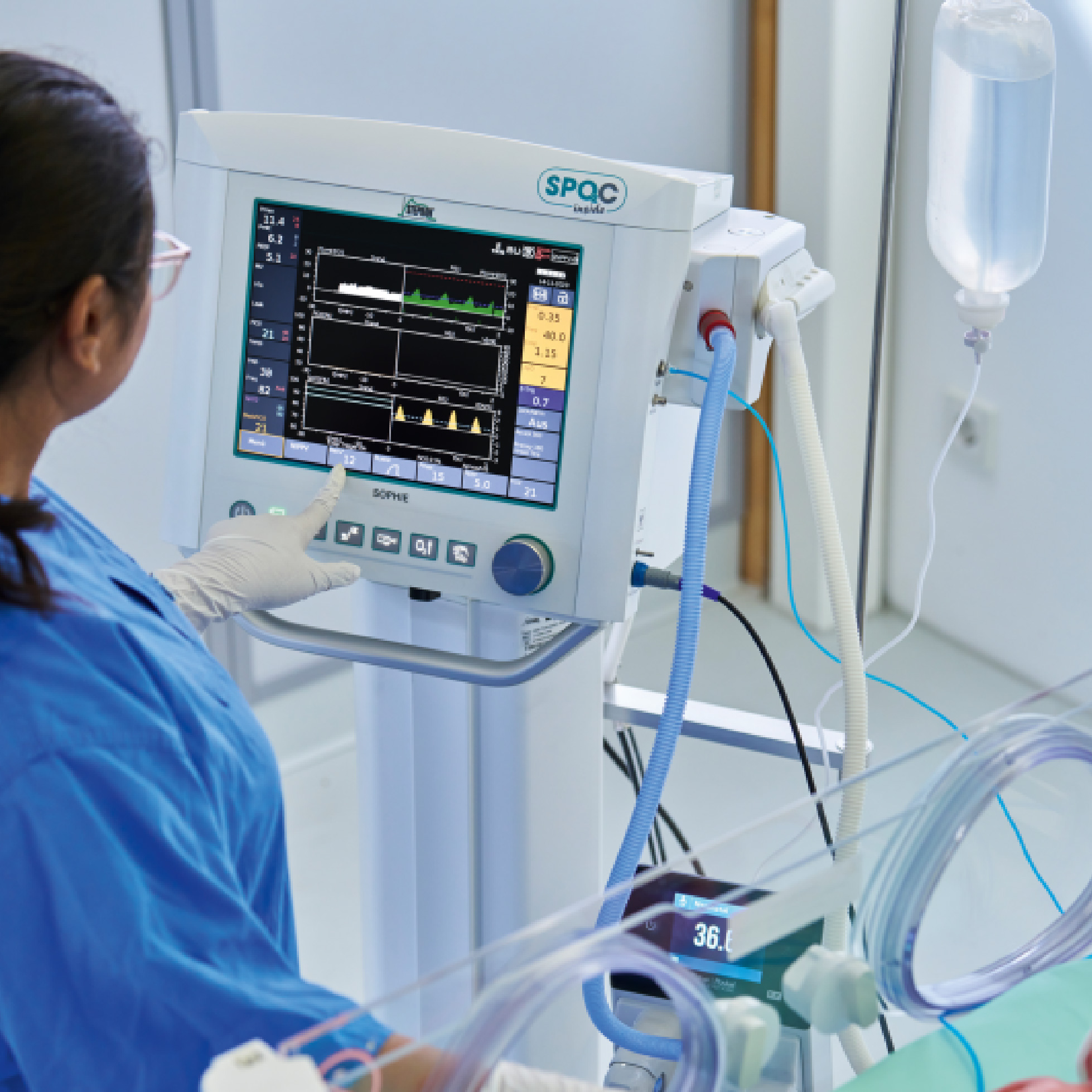

SOPHIE - Image 2

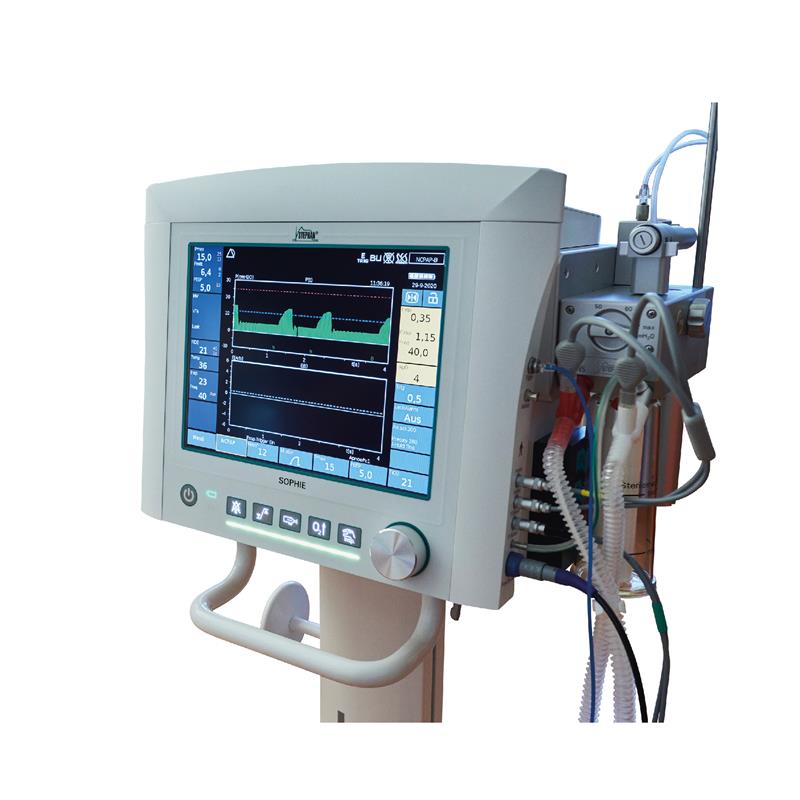

SOPHIE

The new Innovative Neonatal Ventilation System with Conventional and High Frequency Oscillation Ventilation

The new Innovative Neonatal Ventilation System with Conventional and High Frequency Oscillation Ventilation.

SOPHIE stands as a reliable and efficient solution for neonatal and paediatric care, providing the flexibility, precision, and monitoring required to manage critically ill infants. Whether it’s the automatic synchronization of NIV or real-time oxygen saturation adjustments, SOPHIE is built to provide seamless, adaptive, and comprehensive care. 3 in 1 (Conventional , NIV, HFOV) device with an intuitive operating concept.

Get A Quote Request A Demo

This product is currently out of stock and unavailable.

Speak with an Expert

Features

  • Integrated High-Frequency Oscillation (HFO): Activate with a single button for precise care
  • Heated Electronic Flow Sensor: Accurately measures flow rates and tidal volume (Vt) with minimal dead space, preventing condensation
  • Automatic servo-controlled Integrated Humidification: Optimally heats and humidifies respiratory gas for the patient and prevents condensation
  • Synchronized Non-Invasive Ventilation (NIV): External respiration sensor syncs NIV with abdominal movements for real-time adaptation (Optional)
  • User-friendly 12″ Touchscreen Interface: Intuitive touchscreen panel for easy adjustments and monitoring Comprehensive Safety System

Comprehensive Safety System

  • Invasive Ventilation Modes: CPAP, PC-IMV, PC-Ass./Cont., PC- SIMV, CPAP+HFO & PC-HFO (optional), Volume Guarantee (Vlimit / Vtar Modes)
  • Non-invasive Ventilation Modes: nCPAP, NIPPV, SNIPPV (optional), PC-HFO (optional)

Optional

  • SPO2C (SpO2 Controller): Automatically maintains optimal oxygen saturation, reducing risks like brain damage and blindness in neonates. It works independently of the selected ventilation mode and ensures that patients are within the defined SpO2 target range to a level of approx. 80%



SCHILLER reserves the right to make changes in design, specifications and features shown, or discontinue the product described at any time without notice or obligation. In representative. Device availability in your market is subject to regulatory approval
